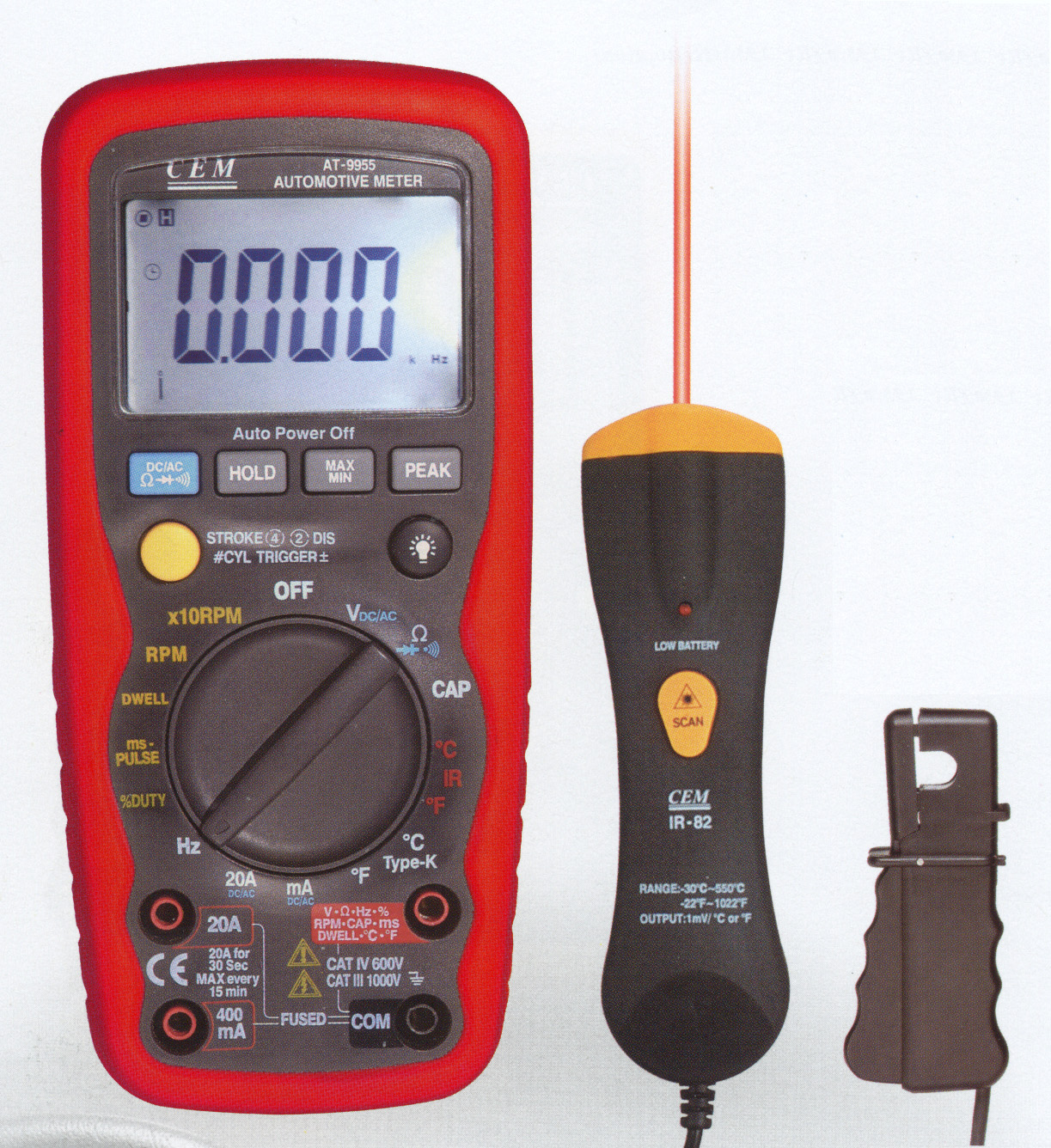

DT-9955 Professional Digital Automotive DMM Tune up Meter with IR Laser Thermometer

Sku: MAT9955-001

Retail Price: $299.95
Sales Price: $179.95

Product Description

This is a brand new CEM AT-9955 certified digital automotive DMM. This top-of-the-line device features duty cycle measurement and dwell angle measurement for 1 - 8 cylinder engine, up to 12,000 RPM. This meter also measures temperature, resistance, capacitance, pulse width, frequency, AC/DC voltage and current, .

An IR laser thermometer is also included to allow precision measurement from distance. The IR thermal meter is ideal for measuring component temperature such as engine and transmission box while the K-type temperature probe allows the exhaust air temperature to be measured. A heavy duty carrying case is also included for the protection of the device and your convenience.

Features
  • Large LCD display
  • RPM measurement for automotive engines with 2 to 10 Cylinders using the inductive Pick-up.
  • Oversized high contrast 6000 counts LCD display with backlight
  • 14 Functions including DCV, ACV, DCA, ACA, Resistance, RPM, Dwell angle, Duty cycle, Frequency, Temperature ( IR Temperature - switchable deg C and deg F), Capacitance, Continuity and Diode Check.
  • Read pulse duty cycle and dwell angle for electronic fuel injection feedback carburetors, and ignition
  • Data Hold and Relative functions
  • Over-range indication
  • Auto Power Off
  • Fused current inputs and Overload protection on all ranges.
  • Measures Milliseconds pulse width to test on-time of fuel injectors, idle air control motors, and electronic transmission controls.
  • Complete with test leads, K-type temperature Probe, IR temperature probe Inductive pick-up and 9V battery.
  • Dimensions / Wt.: 182X 82 X 55mm / 360gram

Specification

Function

Range

Accuracy (%rdg + digits)

DC Voltage

400mV, 4V, 40V, 400V, 1000V

± (0.5% + 2d)

AC Voltage

400mV, 4V, 40V, 400V, 700V

± (0.8% + 4d)

DC Current

400uA, 4000uA, 40mA, 400mA, 4A , 20A

± (1.2% + 2d)

AC Current

400uA, 4000uA, 40mA, 400mA, 4A , 20A

± (1.5% + 4d)

Resistance( Ω )

400, 4K, 40K, 400K, 4M , 40M

± (0.8% + 3d)

RPM(Tach)

600~4000RPM ; 600~12000RPM(x10RPM)

± (2.0% + 2d)

Dwell Angle

4, 5, 6, 8 CYL

± (2.5% + 2d)

Capacitance

40nF, 400nF, 4uF, 40uF,100uF

± (3.0% + 2d)

Frequency (Hz)

0.001Hz~9.99MHz

± (2.0% + 2d)

Duty Cycle

0.1% ~ 99.9%

± (1.5% + 2d)

Temperature

-20 deg C ~ 760 deg C / -4 deg F ~ 1400 deg F

± (3.0% + 2d)

IR temperature

-20 deg C ~ 280 deg C / -4 deg F ~ 536 deg F

± (3.0% + 2d)

Pulse Width

0.1~10mS

± (3.0% + 5d)

Diode Check

Open circuit voltage 1.5V dc typical; Test current 0.3mA typical.

Continuity test

Threshold 30 Ω , Continuity Beeper 2.7 KHz.
