DT-9995 Professional Digital Automotive DMM Tune up Meter up to 12000 RPM with RS-232 PC Interface

Sku: MAT9995-001

Retail Price: $249.95
Sales Price: $179.95

Product Description

This is a brand new CEM AT-9995 certified digital automotive DMM. This top-of-the-line device features Dwell angle measurement for 1 - 12 cylinder engine, up to 12,000 RPM, and duty cycle measurement. This meter also measures AC/DC voltage and current, resistance, period, pulse width, frequency and temperature.

A built-in computer interface allows the information to be uploaded to you PC for analysis and filing. A heavy duty carrying case is also included for the protection of the device and your convenience.

Features
  • Oversize high contrast 4000-count LCD display with Bargraph and back light

  • PRM measurement for automotive engines with 1 to 12 Cylinders using the inductive pick-up
  • Data Hold and Relative functions
  • Max Hold and Min Hold
  • Auto Power Off
  • Fused current inputs and overload protection on all ranges
  • Optional software is included for FREE (Note: the software is included AS IS. No software development kit or support available).

Specification

Function

Max Range

Basic Accuracy

Voltage DC

400mV,4V,40V,400V,1000V

+(0.5%+2d)

Voltage AC

400mV,4V,40V,400V,750V

+(0.8%+4d)

Current DC

400uA,4000uA,40mA,400mA,4A,20A

+(1.2%+2d)

Current AC

400uA,4000uA,40mA,400mA,4A,20A

+(1.5%+4d)

Resistance

400Ω,4kΩ,40kΩ,400kΩ,4MΩ,40MΩ

+(0.8%+3d)

RPM(Tach)

600~4000RPM;600~12000RPM(x 10RPM)

+(2.5%+2d)

Dwell Angle

1CYL,2CYL,3CYL,4CYL,
5CYL,6CYL,8CYL,10CYL,12CYL

+(2.5%+2d)

Duty Cycle

0.1~99.9%

+(1.5%+2d)

Period

0.1~20mS

+(3.0%+5d)

Pulse Width

0.1~10mS

+(3.0%+5d)

Frequency

30kHz

+(2.0%+2d)

Temperature

-20 deg C ~760 deg C / -4 deg F ~1400 deg F

+(3.0%+2d)

Diode Check

Open circuit voltage 1.5V dc typical;
Test current 0.3mA typical

Continuity Test

Threshold 30Ω,Continuity Beeper 2.7kHz

Dimensions (HxWxD):197mm x 88.4mm x 41.2mm
Weight: 390g

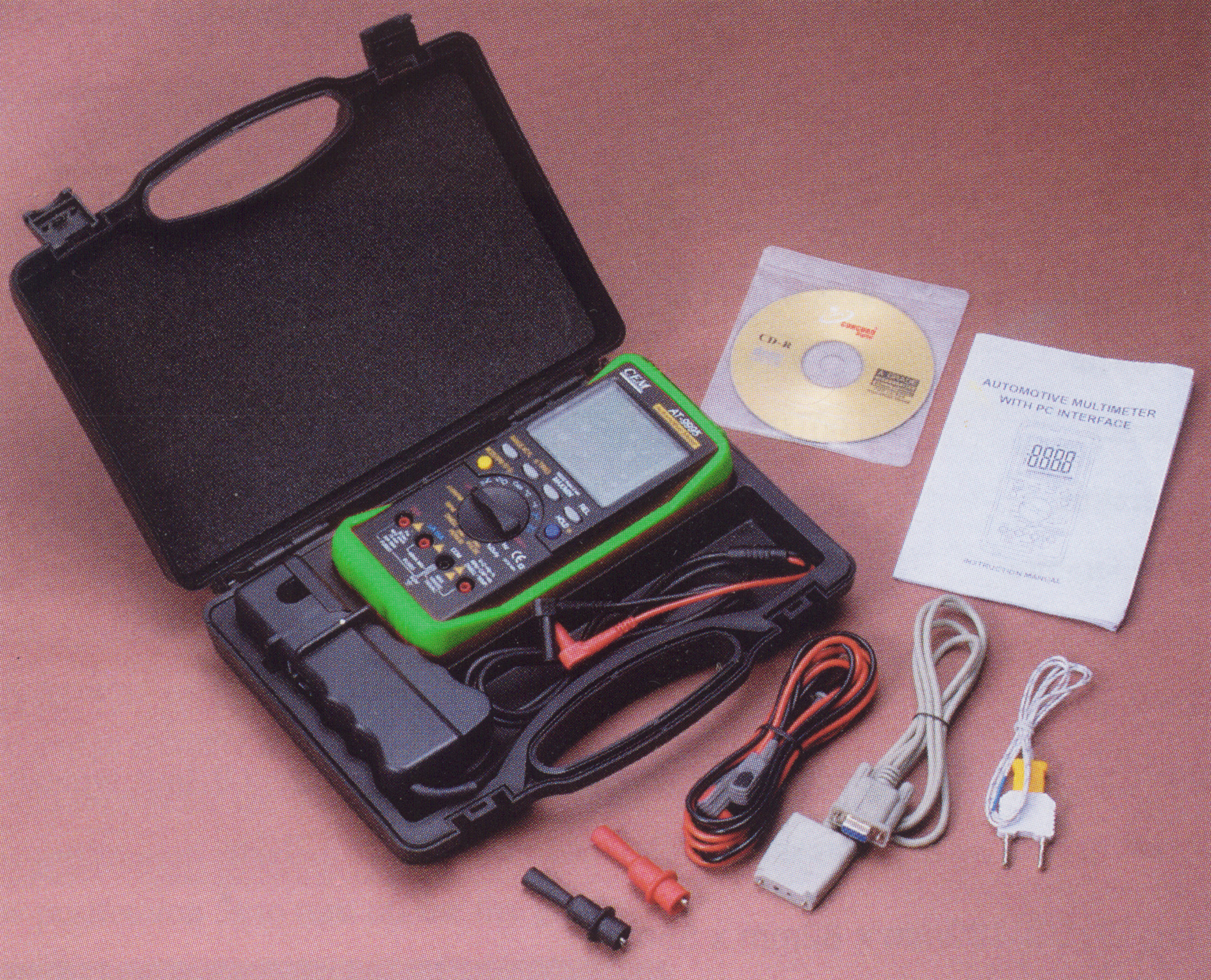

Accessories: Rubber holster, Test leads, K-type temperature Probe and inductive Pick-up

Photos

Click image to enlarge.

Policy Summary:

Product Condition New, guaranteed to work
Packaging Retail pack As shown in the photo
Manufacturer's Warranty 1 year under normal use; replace, repair or refund at seller's sole discretion.  Shipping & handling are not refundable
Seller's Warranty 30 days
Sales tax 8.75% for California residents
