DT-5300 Industrial Digital Earth Ground Resistance Tester Ohm DC/AC Volt Meter

Sku: MDT5300-001

Retail Price: $349.95
Sales Price: $199.95

Product Description

This is a brand new DT-5300 certified digital earth ground resistance tester from Ruby Electronics. This top-of-the-line device replaces the conventional hand generator type tester. This device is ideal for measuring the resistance of grounding on electrical equipments as well as the earth ground conductivity. It can also measures other low regular and liquid resistance as well as AC / DC voltage and resistance up to 200KOhm.

This instrument finds wide applications in the power based industries, telecommunication networks, audio systems and electrical traction systems etc. A heavy duty carrying case is also included for the protection of the device and your convenience.

*** Warning: This device is to be used by the certified technician only. Inadequate use by the un-trained personnel may cause equipment failure and severe body injury.

Features
  • Conforms to the IEC10101, CATIII 1000V standard

  • Large dual display with back light
  • Test hold function for easy operation
  • Automatic zero adjustment
  • 2.5 times per second sampling rate
  • Over range indication
  • Low battery indication
  • Heavy duty carrying case

Specification

Function Range Max Resolution Accuracy
Earth resistance 10 Ω 0.01 Ω +2%rdg + 0.1Ω
100 Ω 0.1 Ω +2%rdg + 3dgts
1000 Ω +2%rdg + 3dgts
Voltage AC 0 - 750 V 1V +1.2%rdg + 10dgts
Voltage DC 0 - 1000 V 1V +0.8%rdg + 3dgts
Resistance 200 KΩ 0.1 KΩ +1.0%rdg + 2dgts
Continuity test Active sound level: < 40Ω ; Test current: < 200 mA
Operation Temp 0 deg C ~ 40 deg C (<80%R.H.)
Storage Temp -10 deg C ~ 60 deg C (<70%R.H.)
Power Source 1.5V AA size Battery x 6 (included)

* Size (HxWxD): 200mm x 92mm x 50mm
* Weight: 700g (with battery)

Certified

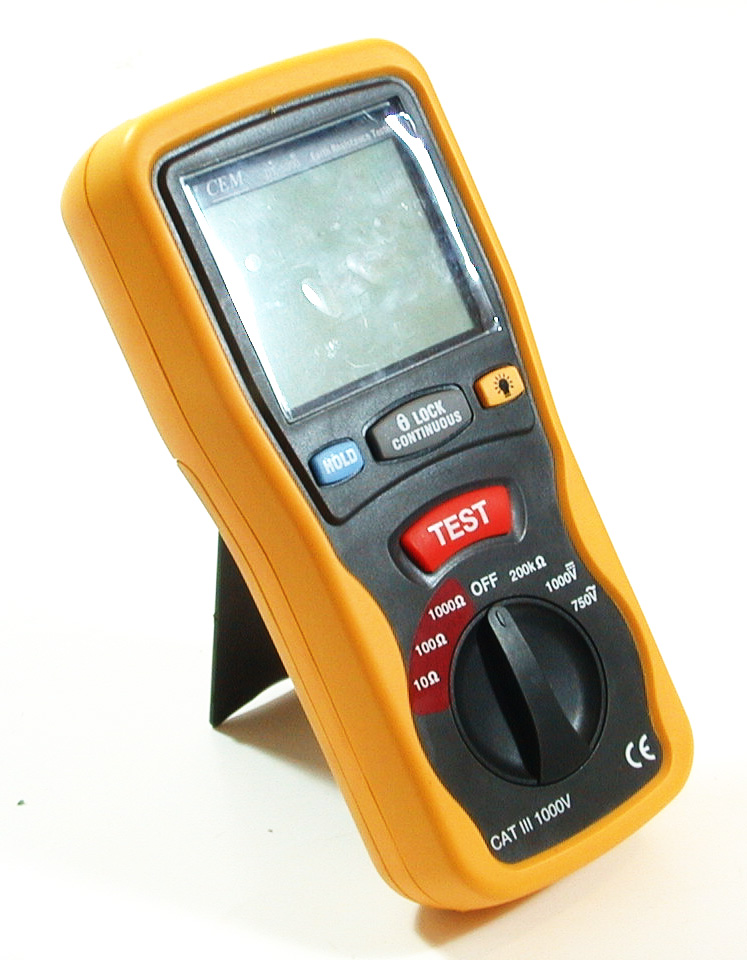

Photos

Click image to enlarge.

Policy Summary:

Product Condition New, guaranteed to work
Packaging Bulk Pack or White/Brown Box As shown in the photo
Manufacturer's Warranty 1 year under normal use; replace, repair or refund at seller's sole discretion.  Shipping & handling are not refundable
Seller's Warranty 30 days
Sales tax 8.75% for California residents

ALL PURCHASES ARE SUBJECT TO ADDRESS VERIFICATION.

We ship to CONFIRMED ADDRESS ONLY.
