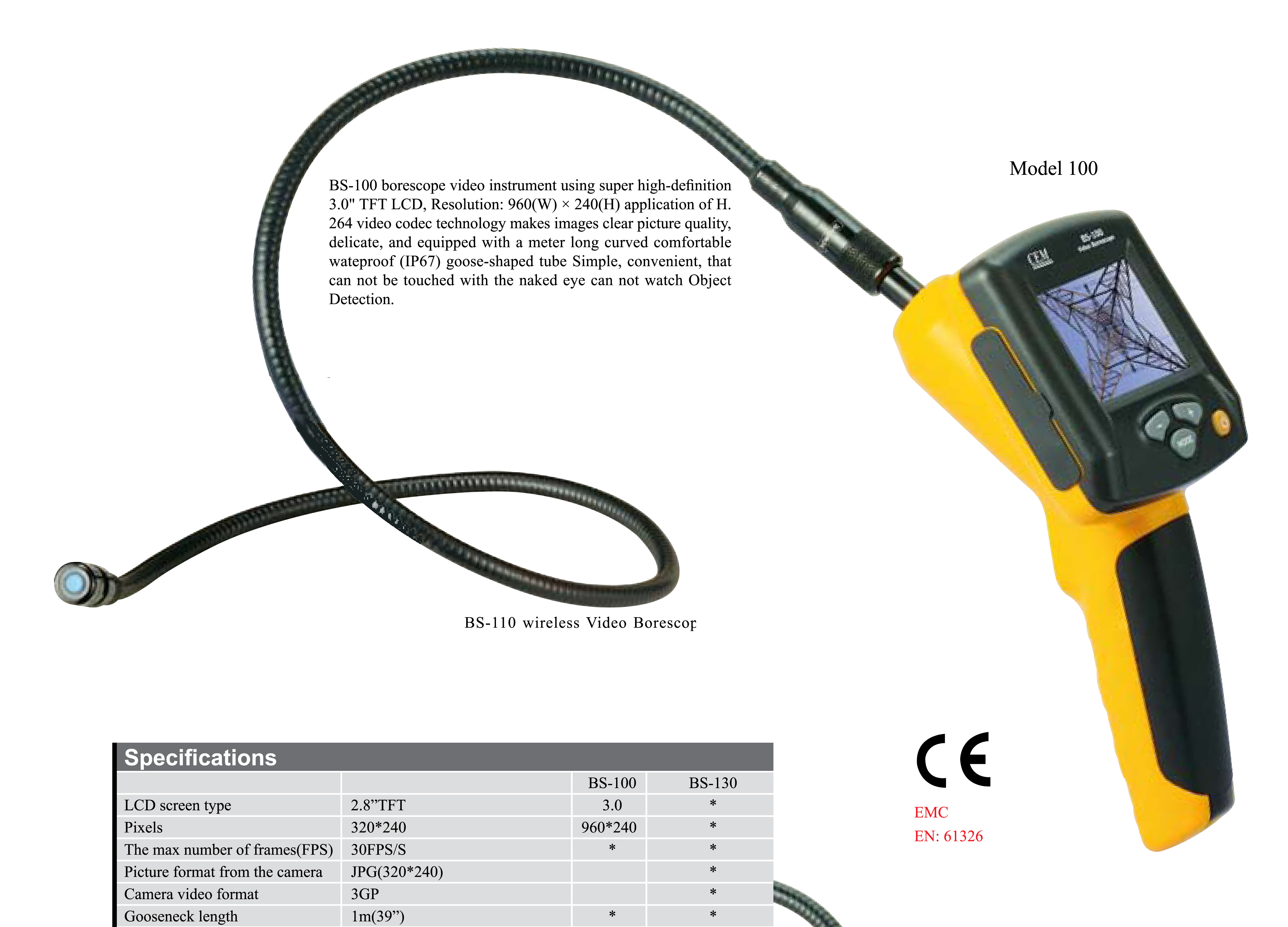

BS-100 3-inch LCD Video Borescope 17mm x 1M Gooseneck with TV-out

Sku: MTBS100-001

Retail Price: $299.95
Sales Price: $149.95

  Product Description

This is a brand new BS-100 video borescope from Ruby Electronics.  This device captures and displays video of objects in the hard to reach tight space.  This device is ideal for inspector to visually evaluate and observe objects through a small opening.  The video or image of the object display on the LCD screen for easy observation.

There is also a built-in TV-out port which allows the video/image to be sent to your NTSC or PAL TV instantaneously. This device is compact and portable.  It comes with a carrying case to protect your device when working in the field.  You can also feed the TV-out signal to a VCR (NOT included) for recording.

This device is NOT designed for medical use and should not be used on any objects other than machinery and structures.

Resellers welcome. Please contact us at for quantity discount.

  • Large 3" color TFT LCD display
  • Flexible gooseneck cable with water proof camera make the visual inspection in hear-to-reach area quick and easy
  • Check the live video on the spot
  • Water proof camera head makes under water inspection quick and easy
  • Support image rotation in camera mode
  • Support TV out
  • Support English, German
  • Back light function allows the device to operate in dark environment

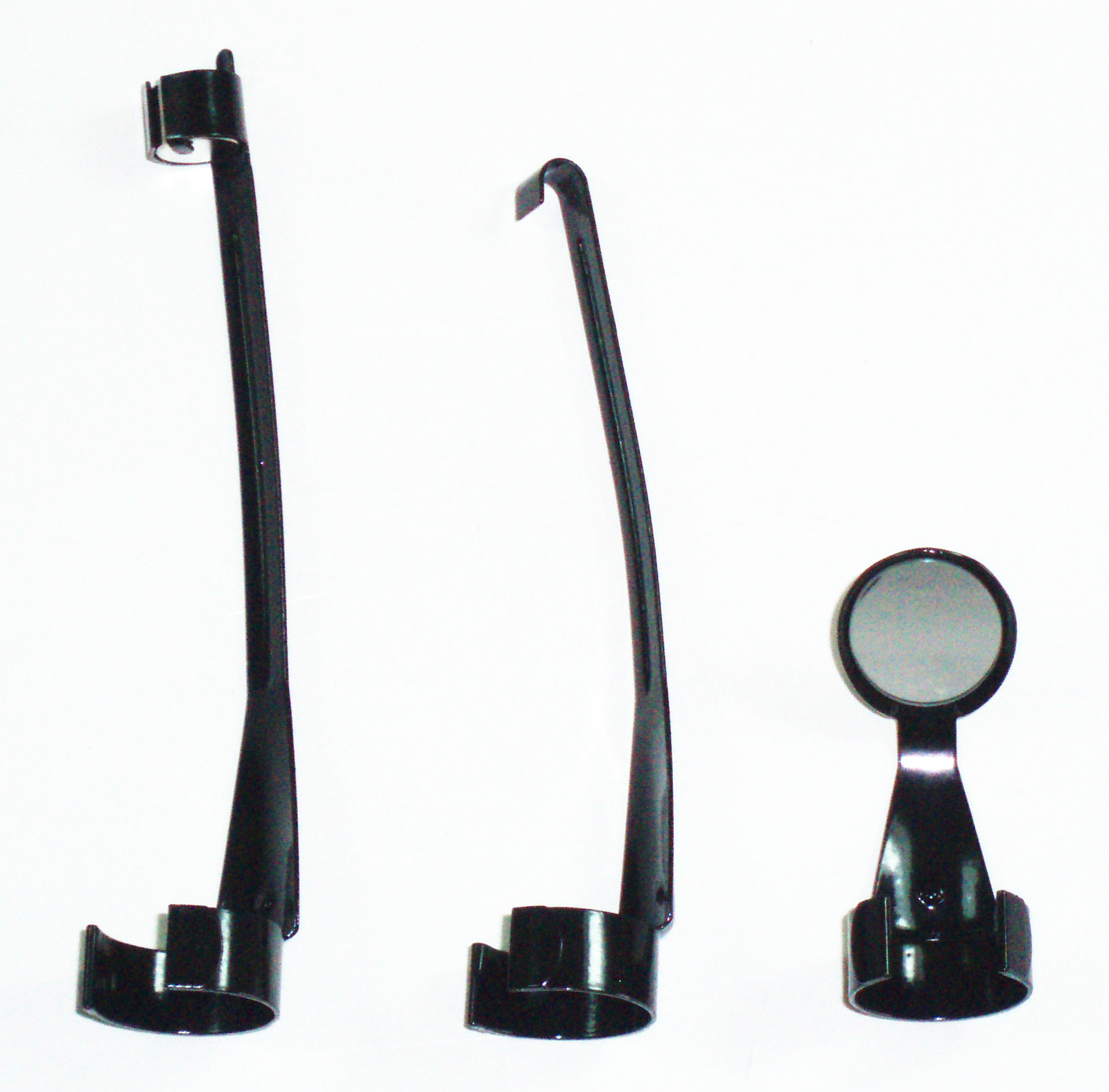

  • Include 3 helpful accessories, mirror, hook and magnet

  • Photo sensor: 1/4" CMOS ; 300,000 pixels

  • Video Resolution: 640 x 480

  • Refresh rate: 30 fps

  • Color information: 24 bits

  • LCD display resolution: 960 (W) x 240 (H)

  • LCD active area: 60mm x 45mm

  • Gooseneck length: 1 meter (39")

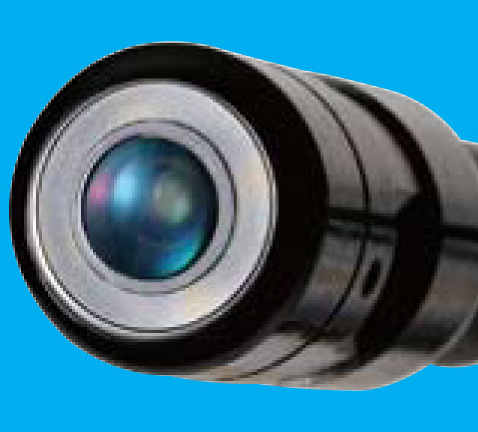

  • Camera diameter: 17 mm (0.66")

  • Camera lighting: 4 super bright white LEDs ; 5 adjustable levels

  • Viewing distance: 15cm to 25 cm (5.9" to 9.8")

  • Working voltage: Li battery 3.7V / 480mA

  • Rechargeable lithium battery capacity (included): 3.7V, 2000 mA/H

  • Working hours after a full recharge: about 4 hours

  • TV-out: PAL/NTSC system

  • Language: English, German

  • Size: 235mm x 95mm x 100mm

  • Weight: 596g

  • Accessories: Manual, Carrying case, AC adapter, video cable and video head hook, magnet and mirror


Click image to enlarge

Policy Summary:

Product Condition New, guaranteed to work
Packaging Retail pack As shown in the photo
Manufacturer's Warranty 1 year under normal use; replace, repair or refund at seller's sole discretion.  Shipping & handling are not refundable
Seller's Warranty 30 days
Sales tax 8.75% for California residents



More store policies

Retail Price: $299.95
Sales Price: $149.95
