240KW 1000 Amp Clamp-on AC/DC Current Voltage Wattage Frequency Resistance Meter True RMS NEW!!

Sku: MDT3348-001

Retail Price: $219.95
Sales Price: $99.95

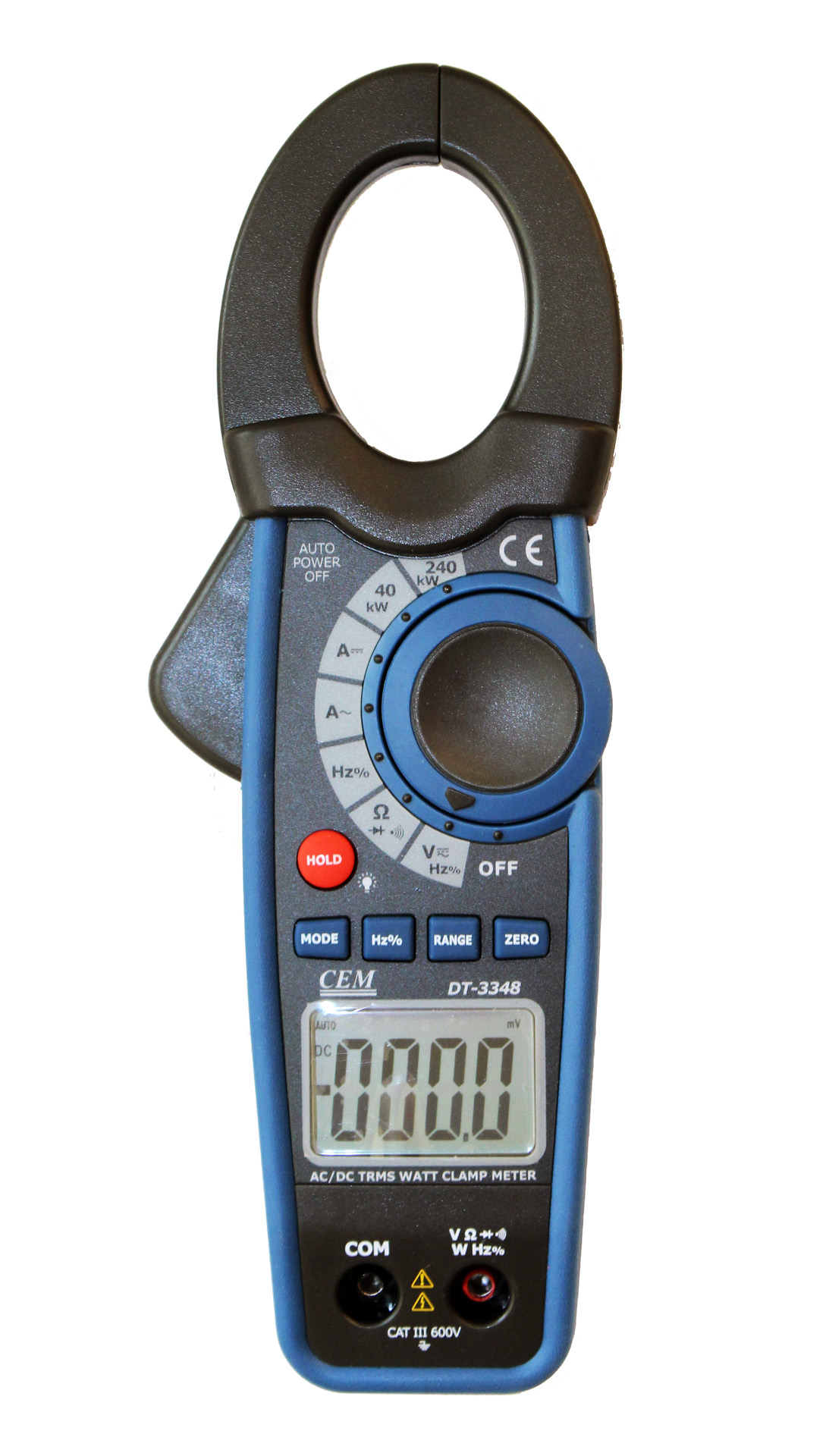

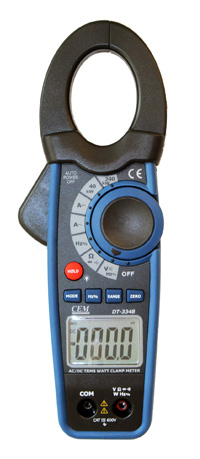

This is a brand new DT-3348 certified digital clamp-on AC/DC meter from Ruby Electronics. DT-3348 Professional True RMS Clamp Meter provides accurate AC/DC Current, Voltage and Wattage readings regardless of waveforms. This meter should be used in most industrial and commercial applications where non-linear loads distort the Current or Voltage waveform.

This meter is CAT III 600V rated. It also measures frequency and resistance. It comes with a heavy duty carrying case to protect your device when working in the field.

*** Warning: This device is to be used by a certified technician only. All safety regulation should be observed when testing high power circuits.

Click image to enlarge

Feature Summary:

  • True RMS AC voltage and current
  • DC and AC True power to 240kW
  • 1.2 (30mm) Clamp digital display
  • Electronic overload protection
  • Continuity buzzer & Diode check
  • Data hold function
  • DCA zero function
  • Auto power off
  • Low battery indication
  • AC/DC current

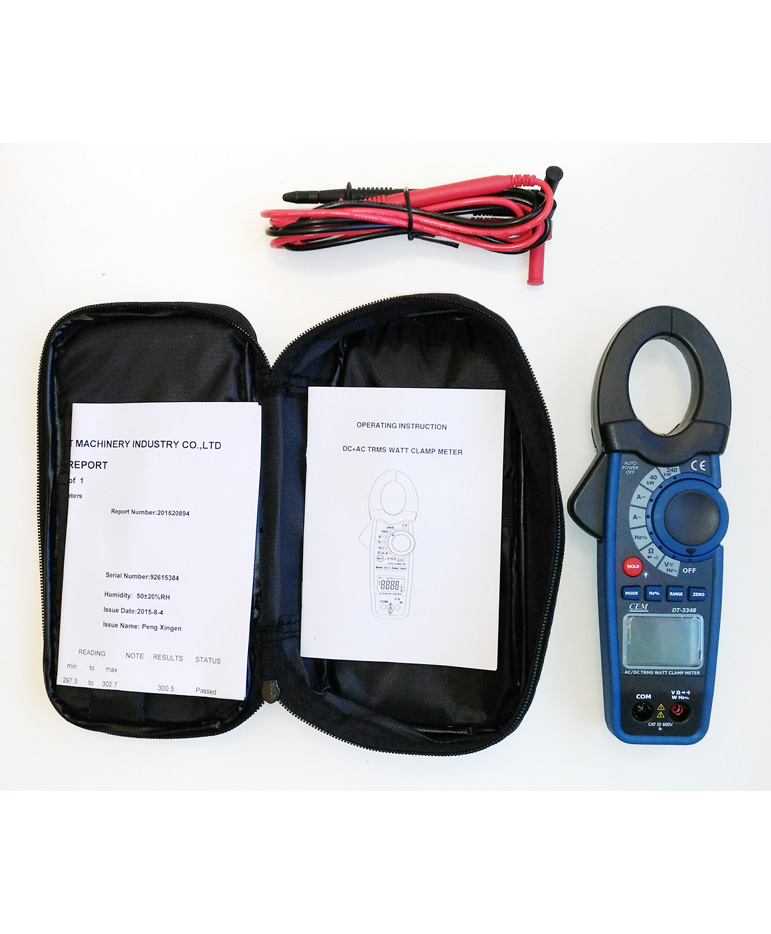

  • Accessories: Test leads and Carrying case

Certified

Key Specification:

Function Max Range Basic Accuracy Max. Resolution
AC Current 1000 A (2.5%+5d) 1 A
DC Current 1000 A (3.0%+4d) 1 A
AC Voltage 600 V (0.8%+2d) 0.1 mV
DC Voltage 600 V (1.0%+4d) 0.1 mV
Resistance (Ohm) 40 MOhm (1.0%+4d) 0.1 Ohm
Frequency (Hz) 100 KHz (1.2% + 3d) 0.001 Hz
AC Power 240 KW (3.0% + 5d) 100 W
DC Power 240 KW (2.5% + 5d) 100 W

* Dimensions: 229X 80 X 49mm

* Weight: 303g

Policy Summary:

Product Condition New, guaranteed to work

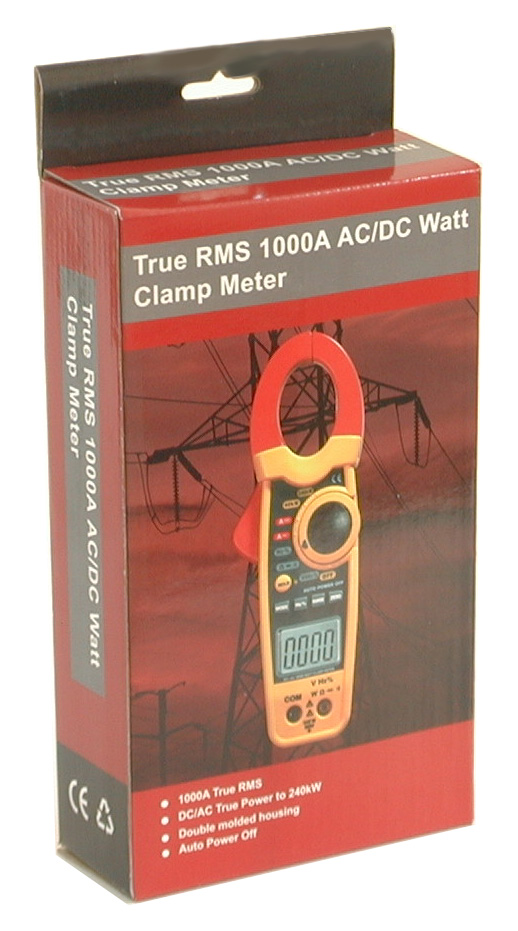

Packaging Retail pack As shown in the photo
Manufacturer's Warranty 1 year under normal use; replace, repair or refund at seller's sole discretion.  Shipping & handling are not refundable
Seller's Warranty 30 days
Sales tax 8.75% for California residents

ALL PURCHASES ARE SUBJECT TO ADDRESS VERIFICATION.

We ship to CONFIRMED ADDRESS ONLY.

More store policies

Retail Price: $219.95
Sales Price: $99.95
